Mustang Technical Discussion > Mustang Projects > Fairstang Project > Community Forums > Mustang Forum Australia - Mustang Tech

View posts since last visit β€’ View posts last 24 hours β€’ View unanswered posts
Forum Index > Mustang Projects

Fairstang Project Reply to topic

Go to page Previous 1, 2, 3 … 32, 33, 34, 35 36 37, 38 Next
Author Message
scott66stang
Mustang King

Offline
Joined: Jul 27, 2010
Posts: 4689
Location: Baldivis WA

0 πŸ‘ / 0 πŸ‘Ž


Wanted to keep them as low as possible so made these brackets to take the original mustang tracks as i already had brand new ones.
Had to heat up and bend the 5mm flatbar to clear the track release movements, would of been easier if i had a bigger offset vice.











Had to bend down these edges so the flat bar sat flat



seat fully forward





And fully back





And Fitted







A poor attempt at covering the XR logo with some external vinyl stickers i got online, also wanted darker but will do for now. Laughing



Converting Rust to Something Drivable

66 Fastback Fairstang Project www.mustangtech.com.au...art=0.html
67 convertibuild project www.mustangtech.com.au...art=0.html
Thought Collecting Couch www.mustangtech.com.au...=1739.html
Caddy Wacked www.mustangtech.com.au...art=0.html

Last edited by scott66stang on Sat Mar 30, 2013 12:17 am; edited 1 time in total

View user's profile
Dynamic
Living the Mustang Dream

Offline
Joined: Jul 27, 2010
Posts: 1336
Location: Perth, W.A

0 πŸ‘ / 0 πŸ‘Ž


I tried to find a picture of your floors, are those seats bolted to the factory seat risers?


Pete
Mustang Project:
dynamicstang.blogspot.com

View user's profileVisit poster's website
scott66stang
Mustang King

Offline
Joined: Jul 27, 2010
Posts: 4689
Location: Baldivis WA

0 πŸ‘ / 0 πŸ‘Ž


Yes mate std height factory risers, got plenty of head room, and if you have long legs you could mount the tracks further forward which will then make the seat go further back, i have done it more to factory settings which is fine for a short ass.

BTW i ended up redrilling the track holes 5mm further to the edge of the flatbar because the seats where touching the Pony trim, will be fine for std trim door handles.


Converting Rust to Something Drivable

66 Fastback Fairstang Project www.mustangtech.com.au...art=0.html
67 convertibuild project www.mustangtech.com.au...art=0.html
Thought Collecting Couch www.mustangtech.com.au...=1739.html
Caddy Wacked www.mustangtech.com.au...art=0.html

View user's profile
Dynamic
Living the Mustang Dream

Offline
Joined: Jul 27, 2010
Posts: 1336
Location: Perth, W.A

0 πŸ‘ / 0 πŸ‘Ž


scott66stang wrote
Yes mate std height factory risers, got plenty of head room, and if you have long legs you could mount the tracks further forward which will then make the seat go further back, i have done it more to factory settings which is fine for a short ass.

BTW i ended up redrilling the track holes 5mm further to the edge of the flatbar because the seats where touching the Pony trim, will be fine for std trim door handles.

Like sweet that sounds good. Awesome progress Scott it's looking real sweet Fap


Pete
Mustang Project:
dynamicstang.blogspot.com

View user's profileVisit poster's website
scott66stang
Mustang King

Offline
Joined: Jul 27, 2010
Posts: 4689
Location: Baldivis WA

0 πŸ‘ / 0 πŸ‘Ž


Remember this lot ??? Time to make it neatly fit into the engine bay and under dash using some of the original mustang switches. 6 control units , engine ecu, gearbox controller, speed controller, climate controller, trip computer and cruise controller. Vomit









Converting Rust to Something Drivable

66 Fastback Fairstang Project www.mustangtech.com.au...art=0.html
67 convertibuild project www.mustangtech.com.au...art=0.html
Thought Collecting Couch www.mustangtech.com.au...=1739.html
Caddy Wacked www.mustangtech.com.au...art=0.html

View user's profile
Nuts
Mustang King

Offline
Joined: Jul 31, 2010
Posts: 4217
Location: Can someone send me some of that "Clean" coal for my furnace. My wood has frozen..

0 πŸ‘ / 0 πŸ‘Ž


You have too much fun Scott!


My Motto - Don't get Caught! If you do, Blame Someone Else!

MUSTANG - Fantastic Not Plastic

View user's profileSend e-mail
cage
Mustang King

Offline
Joined: Jul 30, 2010
Posts: 3710
Location: Sydney

0 πŸ‘ / 0 πŸ‘Ž


Been a while Scott. Great job on the seats and they are sitting nice and low in the beast. Well done mate.


"The simple answer is, even if I have decided I still don't know what to do."

View user's profilePhoto Gallery
scott66stang
Mustang King

Offline
Joined: Jul 27, 2010
Posts: 4689
Location: Baldivis WA

0 πŸ‘ / 0 πŸ‘Ž


cage wrote
Been a while Scott. Great job on the seats and they are sitting nice and low in the beast. Well done mate.


Yes Cage
And almost 1 1/2 years further again since i worked on her last. Laughing
I have cleared "some" backlog of stuff keeping me away from the Mustang. Although in that time it did include importing the Cadillac and getting it on the road.
IÒ€ℒm not going to jinx myself and say its all plain sailing to the finish line from here but hell IÒ€ℒm still bloody keen.

The last few days I have been bolting in the new 1970 22 gallon fuel tank, doing the filler neck mod and decided to fit a BF sedan fuel pump unit.



Apart from cutting some slices each side of the pump hole to fit the support ring underneath and then welding them back up i didnÒ€ℒt do any other welding. The slices also helped in the flattening out process taking out the raised stretched metal.
The welding would of been avoided if i just put one slice in the support ring and wound it through, but at the time i was planning a different approach of totally welding the ring to the tank and making blind nuts so fuel doesnÒ€ℒt leak out the screw threads.





It occurred to me that with my Cadillac fuel sender unit which is screwed into position through open holes into the tank, all that stood between the fuel seeping through the screw holes was the cork gasket, so why not just use cork for this.

When making the gasket it is important to punch the holes smaller than the thread size to ensure a tight seal so fuel doesnÒ€ℒt leak past the thread and out the top.



I made the bottom support ring by cutting off the outer vbelt ring from my mitushiti family van harmonic balancer I replaced recently, using my lathe I have recently purchased. This was after I almost gave up after spending hours trying to find the right size piece of metal laying around my house and our local hardware stores. The inner and outer circle diameters were perfect and is a solid bit of metal., I just drilled and tapped and ground out a bit of taper for the bolt heads to sit flush. I drilled the corresponding holes in the tank just big enough for the threads to push through with force which easily held the plate up.







For extra peace of mind I coated around the studs and gasket area with this stuff that was recommended from the auto shop which is supposed to be very resistant to fuels oils and LPG . It squished out all the sides when I bolted it down with the gasket and upper plate, I then cleaned up the excess and left it overnight to dry.







Fitted the tank the next day with the rubber tape between tank and car body and new sccrews, modified the filler neck and purchased some new 57mm fuel grade rubber hose for filler neck to tank connection.

Put in the new fuel pump and ran fuel hose through the floor to the pipes underneath , ran the electrical wires and fitted some clamps to neaten it all up. Will make a protective cover for the pump later and put some plastic wrapping around hoses where they run near the chassis rails.









Also blanked of the new old pickup and ran the fuel sender wire.

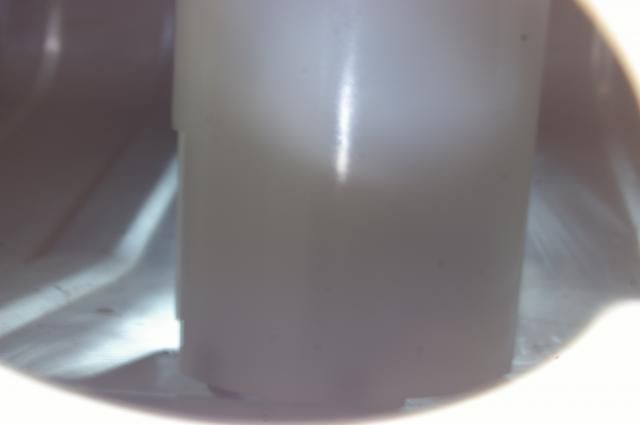

This is the pump inside the tank looking through the old pickup/sender unit hole. Hard to make out in the pic but it sits about 10mm off the bottom of the tank in the 15-20mm pressed rebate in the tank.



Converting Rust to Something Drivable

66 Fastback Fairstang Project www.mustangtech.com.au...art=0.html
67 convertibuild project www.mustangtech.com.au...art=0.html
Thought Collecting Couch www.mustangtech.com.au...=1739.html
Caddy Wacked www.mustangtech.com.au...art=0.html

View user's profile
boofhead
Mustang King

Offline
Joined: Nov 02, 2010
Posts: 4501
Location: Brisbane

0 πŸ‘ / 0 πŸ‘Ž


Very good stuff. Nice to see progress. This is one of the easiest ways to add a baffle and pump into the tank resulting in a neat package.


I will someday think of something clever to say.

View user's profile
hybrid
Mustang King

Offline
Joined: Jul 27, 2010
Posts: 8502

0 πŸ‘ / 0 πŸ‘Ž


Nice work Scott!
Now where did you get the plug for the electricals for the pump? I still haven't got one yet.

I wish I had have gone for the deeper tank too. My pump gets compressed a fair bit in the bottom of the tank. It doesn't matter if it sits on the bottom anyway. It's designed to still let the fuel in.

The higher tank provides a nice little crevice to run the pipes and wiring in too... very cool.


View user's profilePhoto Gallery
cage
Mustang King

Offline
Joined: Jul 30, 2010
Posts: 3710
Location: Sydney

0 πŸ‘ / 0 πŸ‘Ž


Great to see an update Scott, I like the idea of the 80+ litre tank also.

Can you please post a picture of the car from behind and how low the tank sits please.


"The simple answer is, even if I have decided I still don't know what to do."

View user's profilePhoto Gallery
hybrid
Mustang King

Offline
Joined: Jul 27, 2010
Posts: 8502

0 πŸ‘ / 0 πŸ‘Ž


I don't think it hangs down any lower cage.. it's just higher inside.


View user's profilePhoto Gallery
Pinto-Pete
Mustang King

Offline
Joined: Mar 04, 2011
Posts: 2965
Location: Kilsyth

0 πŸ‘ / 0 πŸ‘Ž


hybrid wrote
I don't think it hangs down any lower cage.. it's just higher inside.

I do believe you are right Jeff... Like


I'm Batman...

Toyo Spares.
97203177.
5/89-91 Canterbury rd Kilsyth vic.
Specialist Toyota Dismantlers.

View user's profile
Ausjacko
Mustang King

Offline
Joined: Aug 03, 2010
Posts: 2125
Location: Canberra

0 πŸ‘ / 0 πŸ‘Ž


OK, how did you get the ring inside the tank to bolt up from inside? Isn't it a larger diameter than the hole you created?

The steel lines in that underside shot look very neat, nice work.


'68 J-code GT Fastback
'67 S-code GT coupe, 'Pink Bitz' formerly known as 'Hookin' up a brother'
'69 M_____ GTS Fastback 'Blasted'

View user's profilePhoto Gallery
scott66stang
Mustang King

Offline
Joined: Jul 27, 2010
Posts: 4689
Location: Baldivis WA

0 πŸ‘ / 0 πŸ‘Ž


hybrid wrote
Nice work Scott!
Now where did you get the plug for the electricals for the pump? I still haven't got one yet.

I wish I had have gone for the deeper tank too. My pump gets compressed a fair bit in the bottom of the tank. It doesn't matter if it sits on the bottom anyway. It's designed to still let the fuel in.

The higher tank provides a nice little crevice to run the pipes and wiring in too... very cool.



I got a working BA ute fuel pump off EBAY $20 that came with the metal mounting ring, electrical plug and fuel line fittings. The pump was too long when pushed down so i pulled it apart and shortened the rods which didnt go too well, i decided to put in a new pump i had, but in the end i couldnt find correct submersible replacement hose so just went and got the new BF one instead.
The ute one also had the fuel sender in it but the variable electrical part broke in half when i tried to remove it and fit to the BF one which had the sender mounting points and electrical terminals already available to use.

BA ute pump




hybrid wrote
I don't think it hangs down any lower cage.. it's just higher inside.


Thats correct

But i will put up a pic anyway because now the fuel cap is fitted Laughing
Ignore the droopy exhaust extentions i have new ones to fit, they worked out flat to the cutouts on mockup because of the angle but when i welded it all together the rest of the exhaust straightened. I didnt realise untill i lowered the hoist Neutral







Converting Rust to Something Drivable

66 Fastback Fairstang Project www.mustangtech.com.au...art=0.html
67 convertibuild project www.mustangtech.com.au...art=0.html
Thought Collecting Couch www.mustangtech.com.au...=1739.html
Caddy Wacked www.mustangtech.com.au...art=0.html

Last edited by scott66stang on Sat Aug 16, 2014 12:45 am; edited 2 times in total

View user's profile
